Tata Tipper LPK 912 - Durable Hauler | Abreco Motors

Overview

Tata 912 LPK is a tipper with gross vehicle weight of 9600 kg. Powering this Tata tipper is 3300 cc 4 cylinder, 3.3L NG engine. Tata 912 LPK tipper produces 125 HP of power and 390 Nm of maximum torque. The engine of this Tata 912 LPK tipper is matched to a 5 speed (5F+1R) gearbox. This Tata 912 LPK tipper comes in 4x2 axle configuration. Chassis underlying this Tata 912 LPK tipper is ladder type with cross members. 912 LPK tipper rear suspension duty is done by semi elliptical leaf springs.

Tipper LPK 912 Features

Music System with high-quality Blaupunkt speaker
High-Speed USB charger
Manual Regeneration switch

D+1 Seating Configuration
Seat Adjustment in XZ direction
Reduces driver Fatigue, increases overall driving comfort
Melba Fabric for Seats for better comfort both in summer and winter

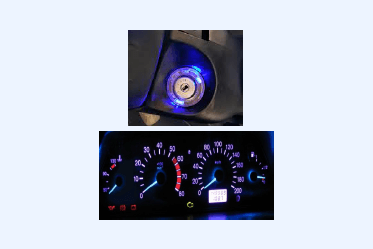

White illumination facial and Ignition switch for easy accessibility at night.

The DNA of BS4 Engine is carried to the BS6 Engine so that the same reliability and Mileage Superiority is achieved
In 3.3L NG BSVI Engine
Max Power is 125 kW @ 2600 r/min
Max Torque is 390 Nm @ 1000 -2200 r/min and Low end Torque is 390 Nm. Due to this unique combination of equal Low End and Max torque avaialble at initial rpm level with flatter torque at wider rpm band, this engine delivers better mileage, better response at start and reduces driving fatigue by less gear shifting.

New Instrument cluster with features like Gear shift Advisor, Driver Message Screen, Average fuel Economy and Tell Tale Symbols
Display trip indication (Trip A& B), DEF gauge, Fuel Gauge, Oil Pressure Gauge, Distance to empty, Malfunction indication lamp, Screen navigation etc.

Tilt and Telescopic Steering for easy maneuverability in narrow lanes and the best driving position
Four spoke soft touch steering wheel for superior driving comfort

Safety enhanced with more solid built quality all steel Cabin.
Less Gear shifting and clutching efforts for less driving fatigue

Electric Switch for Tipping
Stone Guard addition
Cast support branch with improved stiffness of spring

A robust sidewall provides sufficient lateral holding power
Wider tread surface
Enhanced high-speed stability
Less rolling resistance- Better fuel economy
Better Tyre mileage

Tipper LPK 912 Specifications

Rear Axle Ratio TATA RA 1068HD Fully Floating Benjo Axle (RAR - 4.857)

Brake Type Dual Circuit Full Air S" Cam Brakes With Auto Slack Adjuster (Drum - Drum)

Clutch Single Plate Dry Friction Type, 310 mm

Battery 12 V - 100 Ah

3.3NG BS6 Engine
Engine Displacement (cc) 3300
Engine Type 4 Cylinder in line water cooled direct Injection diesel engine with intercooler
Power 92KW (125 hp) @ 2600 r/min
Torque 390Nm @ 1000 -2200 r/min

Fuel tank capacity 90L

Gear Box GBS-40 (5F + 1R Synchromesh) with Cable shift

Gradeability 40%, Ground Clearance (mm) 211mm

Cabin Day Cab

Steering Type Tilt & Telescopic Power Steering (Dia - 426)

Front Type Semi-Elliptical Leaf Spring
Rear :Semi : Elliptical leaf spring

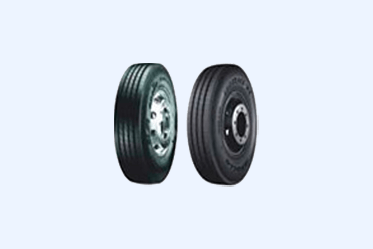

Tyres 8.25 x 16 -16PR

Load Body Dimenssions (mm) (LxWxH) 3573 X 2134 X 670
Load Body Size 5 CuM- UBT
Long member Size (mm) (LxBxH) 200mm x 60mm x 5mm
Seating Capacity D+1
TCD(m) 10.2
Variants CAB, Fully Built Tipper
Warranty 3 Years/ 3 Lakhs Kms
Wheel base (in mm) 2775mm

GVW (in Kg) 9600, FAW (in Kg) 3375, RAW (in Kg) 6225
